Thread: Series3 OLED boot image

  1. #1
    Join Date
    Dec 2007
    Posts
    1

    Series3 OLED boot image

    The OLED image is stored in the gzipped portion of the Series3 PROM image. It is a 4-bit 48x48 grayscale image stored in a proprietary format, and downloaded to the display via I2C. The first few bytes look like this:

    Code:
    0000000: 4000 0000 0000 0000 4000 0000 03d0 0000  @.......@.......
    0000010: 4000 0000 0000 005b 4040 0000 0000 0bda  @......[@@......
    0000020: 4000 0000 0000 0000 4000 dbc0 0000 0000  @.......@.......
    0000030: 4013 db40 0000 0000 4000 0001 dbd0 0000  @..@....@.......
    If you extract this image (hint: it is exactly 0x370 bytes long), you can decode it into a PGM file called out.pgm with the oled_decode.pl utility:

    Code:
    $ ./oled_decode.pl tivoguy.raw
                                    XX:
                .XX.               .XXX:
                XXXX               :XXXX.
               .XXXX:              :XXXXX
               .:XXXXX:            :XXXXX
               .:XXXXXXX          .XXX::.
               : :X:.:XXX.        XX:
               .XX.    :XX       :XX
                        :XX     .XX
                         XX.    XX.
                         :X:   .XX
                         .X:   XX.
                         .XX   XX
                       ...XX  .XX
                 .::XXXXXXXXXXXXX::......
               :XXXXXXXXXXXXXXXXXXXXXXXXXX
              XXXXXXXXXXXXXXXXXXXXXXXXXXXXX
             XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
             XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
             XXXXXXX::XXXXXXXXXXX .XXXXXXXX
             XXX..    .: X:XXXXX: :XXXXXXXX
             XXX      .. :  XXXX  XXXXXXXXX
             XXXXX  :XX::X. :XX: .X. .:XXX:
             :XXXX. :XXXXX: .XX. :.    .XX:
             :XXXX. :XX.:XX  X:  X  X  .XX.
             .XXXX. :XX  XX. X  :X  :  XXX
              XXXX. :XX  XX.    XX.   .XXX
              XXXX. :XX  XX:   .XXX...XXX:
              .XXX: :XX. XXX   XXXXXXXXXX.
               XXXXXXXXXXXXX: :XXXXXXXXXX
               :XXXXXXXXXXXXXXXXXX::XXXXX
               .XXXXXX .:XXXXXXXX. XXXXX.
                XXXXXX    ::::.   XXXXXX
                .XXXXXX:.       .XXXXXX:
                 XXXXXXXXX:...:XXXXXXXX
                 XXXXXXXXXXXXXXXXXXXXX:
                 .XXXXXXXXXXXXXXXXXXXX
                  ::::.:XXX::XXXXXXXX
                        XXX .XX. ...
                        :XX .XX
                        :X: .XX
                        :X: .XX
                    ::. :X: .XX
                  :XXXXXXXX XXXXXXX.
                 XXXXXXXXXX.XXXXXXXX:
                :XXXXXXXXX. XXXXXXXXX
                XXXXXXX:.    :XXXXXXX.
                .:XXX.         .:XXXX.
    You can then edit the PGM file, convert it to/from other formats, etc. You may then re-encode it using the oled_encode.pl script:

    Code:
    $ ./oled_encode.pl out.pgm > new.bin
    And then patch it back into the PROM using a hex editor, gzip, etc.

    oled_encode.pl uses ImageMagick/PerlMagick so it can accept other file formats, like PNG, BMP, etc. You can use the netpbm tools (e.g. pnmtopng, pnmtoppm | ppmtobmp) to manipulate this file.

    Note that the startup logo does not fill the entire OLED display, as the display is more than 48 pixels wide.
    Attached Files Attached Files

  2. #2
    Join Date
    Jul 2005
    Posts
    573
    Thanks for posting the script again. I was combing through our notes on the IRC log and I found the previous paste dumps you linked, but the links were dead.

  3. #3
    Join Date
    Jul 2005
    Posts
    573
    Okay so after much mucking around with the script and with the help of amatus and Mr_Penguin on IRC we've got the oled_encode.pl script fixed:

    Code:
    #!/usr/bin/perl -w

    use Image::Magick;
    use bytes;

    my($img, @pix, @out, $r, $i, $j, $bytes);

    die "usage: oled_encode.pl <image.pgm> > out.bin" if(!defined($ARGV[0]));

    $img = Image::Magick->new;
    $r = $img->Read($ARGV[0]);
    warn "$r" if "$r";

    $r = $img->Crop(geometry=>'48x48');
    warn "$r" if "$r";

    for($i = 0; $i < 48; $i++)
    {
        @pix = $img->GetPixels(y => $i, map => 'I');
        for($j = 0; $j < 48; $j++)
        {
            push(@out, int($pix[$j] / (15*1024)));
        }
    }

    $j = 0;
    $bytes = "";
    for($i = 0; $i < 48 * 48 / 3; $i++)
    {
        $byte = ($out[$j] << 6) | ($out[$j+1] << 3) | ($out[$j+2]);
        $bytes .= sprintf("%c", $byte);
        $j += 3;
    }
    $bytes .= sprintf("%c%c", 0, 0);

    $j = 0;
    for($i = 0; $i < 110; $i++)
    {
        syswrite(STDOUT, "@".substr($bytes, 0, 7));
        $bytes = substr($bytes, 7);
    }

    exit 0;
    Some small changes needed to be made to get it working correctly, and the script now properly encodes the source data into the resultant output.

  4. #4
    Join Date
    Jul 2005
    Posts
    573

    Success!

    Old:

    New:

    Crappy Proof of Concept (Courtesy of iPhone's Crappy Camera):



    I'm actually quite pleased with the result, even though the atrocious photo doesn't do it justice. Once my Canon gets fixed, I'll post new photos.

  5. #5
    Join Date
    Jul 2005
    Posts
    573

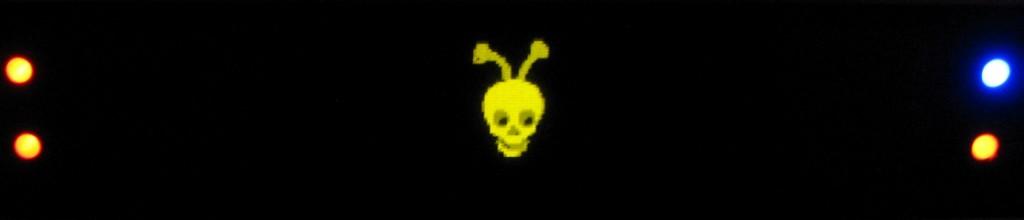

    For reference, here's a slightly better photo:
